XD4069

Hex unbuffered inverter

Application

Logic inversion
Pulse shaping
Oscillators
High-input-impedance amplifiers

View details View datasheet More products

Overview

Product details

The XD4069 is a general purpose hex unbuffered inverter. Each inverter has a single stage.It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.

Features

● Fully static operation
● 5 V，10 V，and 15 V parametric ratings
● Standardized symmetrical output
● characteristics
● Complies with JEDEC standard JESD 13-B
● Specified from -25℃ to +85℃

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples

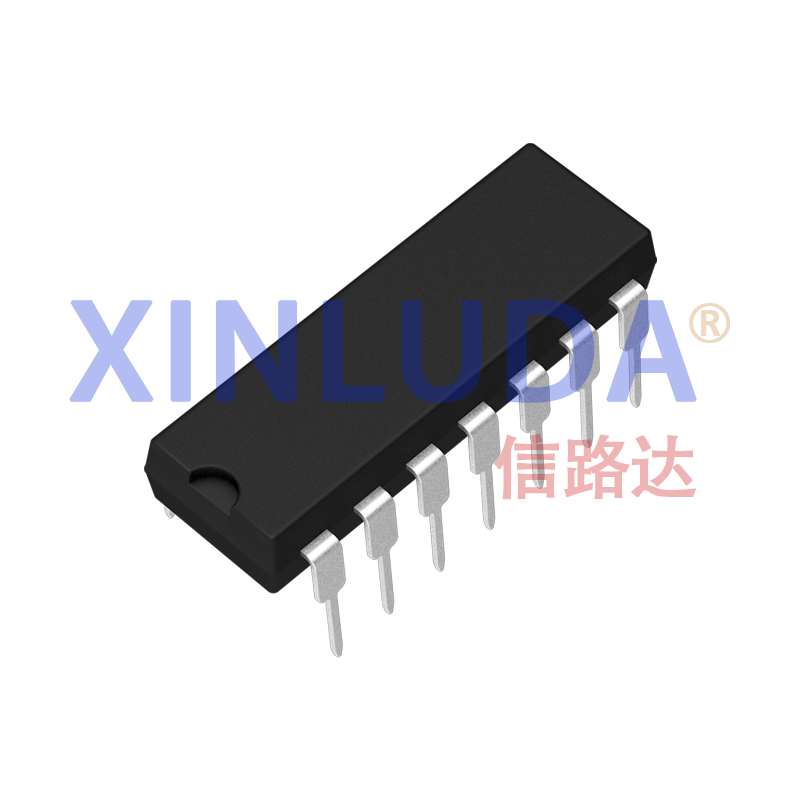

XD4069	DIP-14	-40℃~+85℃	1000 pcs/Tube	✔	Sample application
