XD74LS151

Data Selectors/Multiplexers

Application

  • Keyboard encoding

  • Range selection

  • N-bit encoding

  • Code converter and generator

View details View datasheet More products
XD74LS151

Overview

Product details



These monolithic data selectors/multiplexers contain full on-chip binary decoding to select the desired data source.


The XD74LS151have a strobe input which must be at a low logic level to enablethese devices.


A high level at the strobe forces the W output high,and the Y output(as applicable)low. The XD74LS151feature complementary W and Y outputs.

Features

  • ●  Others Select One-of-Eight Data Sources

  • ●  All Perform Parallel-to-Serial Conversion

  • ●  All Permit Multiplexing from N Lines to One Line

  • ●  Also For Use as Boolean Function Generator

  • ●  Input-Clamping Diodes Simplify System Design

  • ●  Fully Compatible with Most TTL Circuits

Apply for samples

Product Package Operating temperature QTY. ROHS Apply for samples

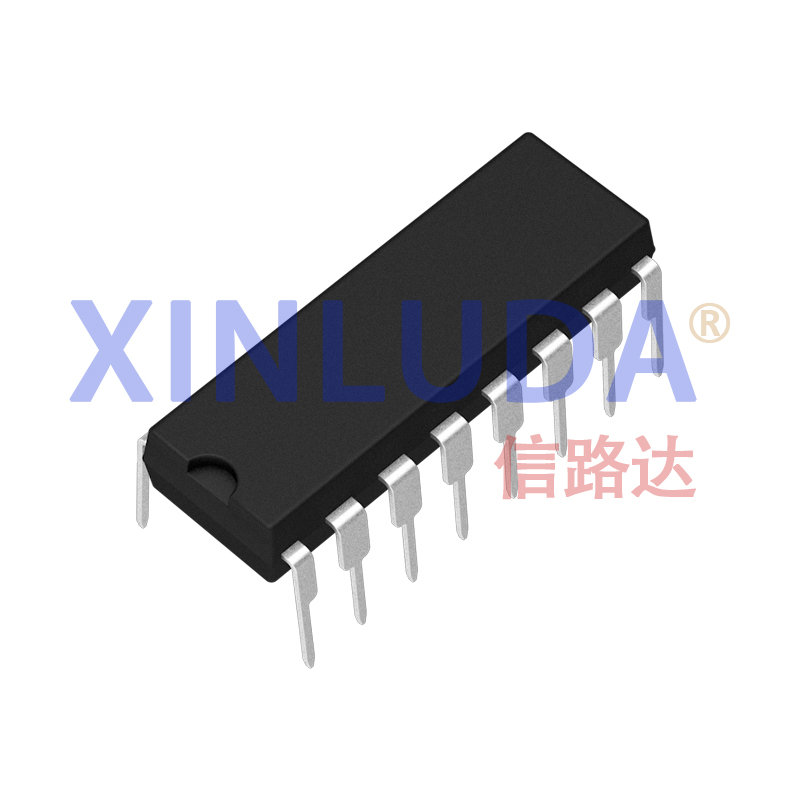

XD74LS151 DIP-16 0℃~+70℃ 1000 pcs/Tube ✔ Sample application
