XL1403

Low Voltage Reference

Application

High stability current reference
Reference voltage source for 8 to 12-bit analog-to-digital converters
Voltmeter system reference

View details View datasheet More products

Overview

Product details

The XL1403 and XD1403 are precision band−gap voltage reference designed for critical instrumentation and D/A converter applications. This unit is designed to work with D/A converters, up to 12 bits in accuracy, or as a reference for power supply applications.

Features

● Output Voltage: 2.5 V ± 25 mV
● Input Voltage Range: 4.5 V to 30 V
● Quiescent Current: 1.2 mA Typical
● Output Current Up to 10mA
● Temperature Coefficient: 10 ppm/°C Typical
● Guaranteed Temperature Drift Specification
● Function Equivalent to AD580

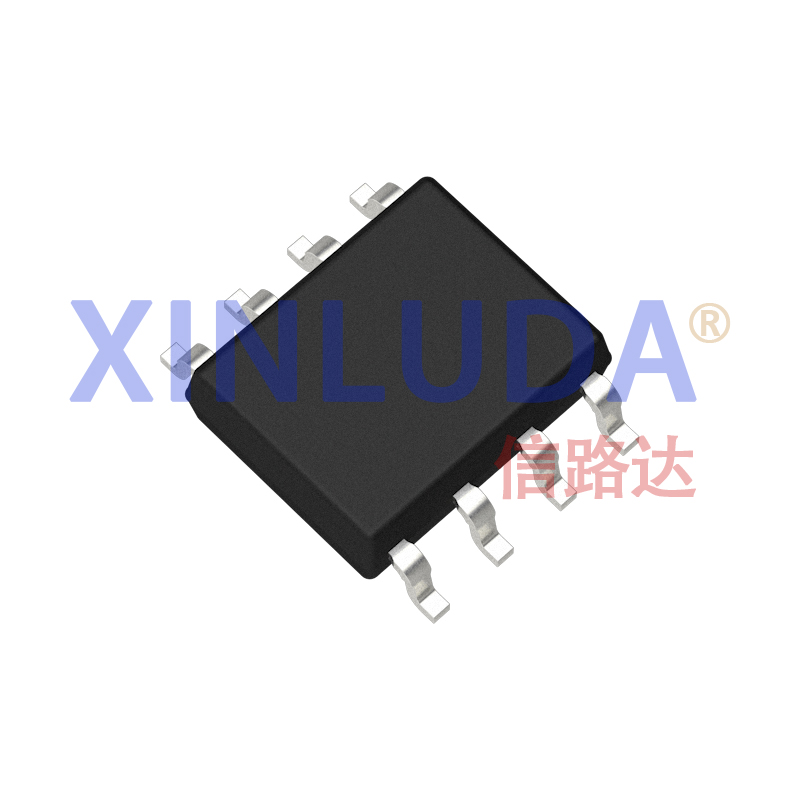

● Standard 8−Pin DIP (XD1403) and 8−Pin SOIC (XL1403) Package

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples
XL1403	SOP-8	-40℃~+85℃	2500 pcs/Reel	✔	Sample application
